ABS Braking System Sensor Ring

Precision Signal, Safe Deceleration, High-Volume Economy

FRING Powder Metallurgy’s ABS Braking System Sensor Rings are precision-engineered components that convert wheel speed into electronic signals for anti-lock braking systems. Manufactured via high-density powder metallurgy, these rings provide consistent magnetic reluctance variation, ensuring reliable brake modulation under extreme conditions.

DatasheetGet A Quotation

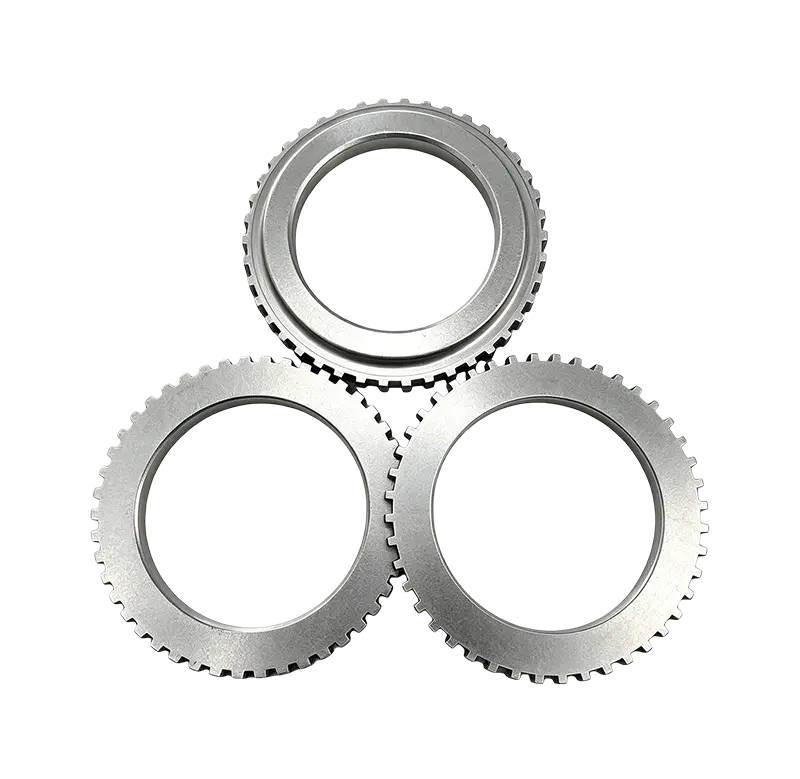

Product ABS Braking System Sensor Ring

Main Datasheet

Number of teeth
48, 60, 96, 120
Module
0.8, 1.0, 1.25, 1.5, 2.0
Application
Disc brake & drum brake systems, passenger cars, light trucks
Compatible axle types
Standard semi-axles, trailer axles
Installation
Press-fit / interference fit
Material
Fe-Cu-C, Fe-Ni

Applicable Specifications

Stringent Standards, Precision Specifications, Ultimate Reliability

  • Design & Quality Standards

    MPIF 35, ASTM A838, IATF 16949

  • Standard Material Grades

    MPIF: FC-0208, FN-0205, FL-4605

  • Typical Material Properties (Sintered Fe-Cu-C)

    Density 6.7 – 7.0 g/cm³ Hardness 70 – 80 HRB Tensile Strength ≥310 MPa

  • Net-Shape Dimensional Tolerances

    Diameter (ID/OD): ±0.05 mm Tooth Spacing: ±0.02 mm Radial Runout: ≤0.10 mm

Get Your Quote Now

MOQ: 500–2000 pcs (Negotiable depending on part design and volume)
Lead Time: 2–3 weeks for standard parts, 3–5 weeks for custom parts
OEM/ODM: Available
Engineering Support: Yes (Drawing review + Material selection + Magnetic/Mechanical parameter optimization)

Please fill out the form below with your project details and inquiry. One of our technical representatives will get back to you within 24 hours.
