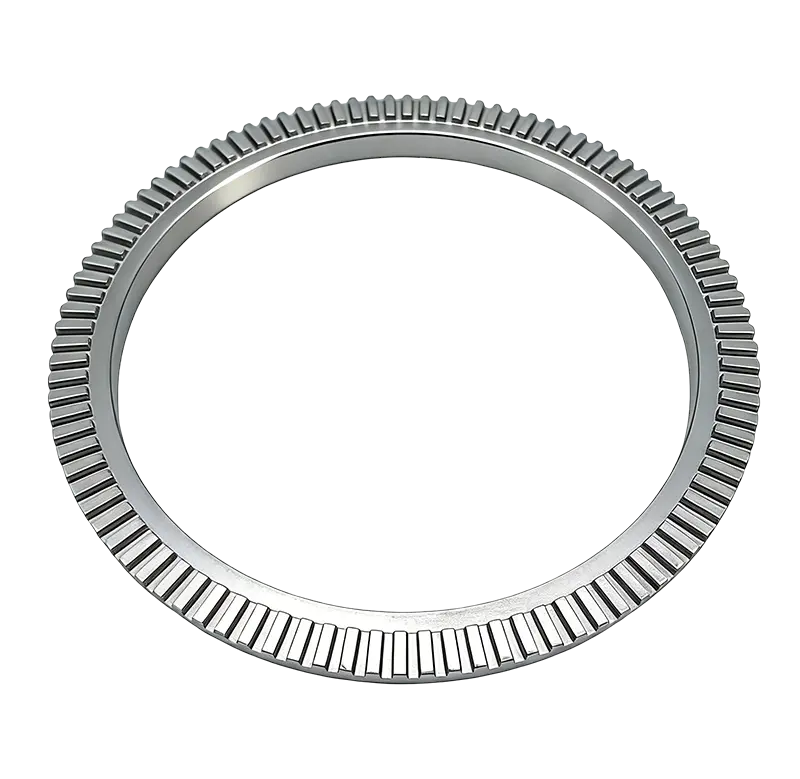

ABS Sensor Ring for Axle Wheel Ends
FRING Powder Metallurgy’s ABS Gear Rings are engineered for precise speed sensing and stable signal transmission, delivering reliable anti-lock braking performance across diverse automotive chassis systems. Fabricated via advanced powder metallurgy net-shape processing, these gear rings feature tight dimensional accuracy and uniform tooth profiles, ensuring seamless pairing with wheel speed sensors for real-time vehicle speed monitoring.
With optimized material formulation and rigorous quality control, they offer durable, consistent performance to support safe and stable braking systems, complying with strict automotive industry standards.
Main Datasheet
Applicable Specifications
Stringent Standards, Precision Specifications, Ultimate Reliability
Design & Quality Standards
MPIF 35, ASTM B817, GB/T 1979, IATF 16949
Standard Material Grades
MPIF: FC-0208, FN-0205, FL-4605
Typical Material Properties (Sintered Fe-Cu-C)
Density 6.8 – 7.0 g/cm³ Hardness 75 ± 5 HRB Tensile Strength ≥300 MPa
Net-Shape Dimensional Tolerances
Diameter (ID/OD): ±0.05 mm Tooth Spacing: ±0.02 mm Radial Runout: ≤0.08 mm
Performance Verification
Output Voltage Variation: ≤±5% (across air gap 0.3 – 1.5 mm)
Get Your Quote Now
MOQ: 500–2000 pcs (Negotiable depending on part design and volume)
Lead Time: 2–3 weeks for standard parts, 3–5 weeks for custom parts
OEM/ODM: Available
Engineering Support: Yes (Drawing review + Material selection + Magnetic/Mechanical parameter optimization)
