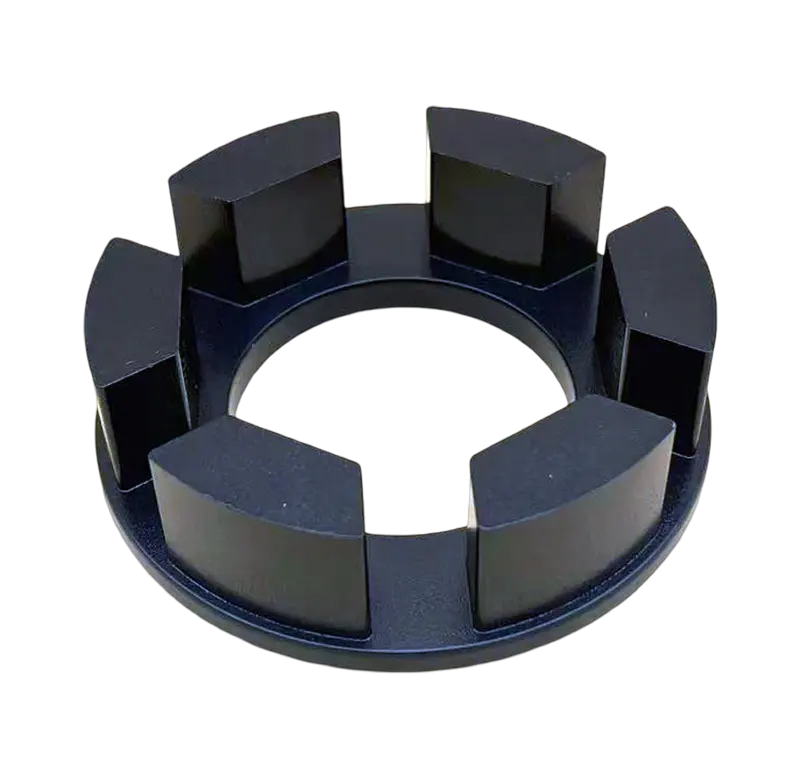

SMC Yoked Stator Core
FRING’s one-piece SMC yoked stator cores integrate the yoke and teeth into a single compacted component, eliminating assembly steps and reducing reluctance. This design enhances magnetic flux concentration and structural rigidity for high-torque, low-speed motors used in industrial drives and robotics.
Main Datasheet
Applicable Specifications
Stringent Standards, Precision Specifications, Ultimate Reliability
Design & Quality Standards
ISO 9001, IATF 16949, IEC 60034
Standard Material Grades
FR-SMC-600Y, FR-SMC-700
Typical Magnetic Properties
Saturation Flux Density ≥1.6 T Permeability (max) ≥500 Core Loss ≤18 W/kg @ 1000 Hz, 1.0 T
Typical Physical Properties
Density 7.3 – 7.5 g/cm³ Electrical Resistivity ≥100 µΩ·m Compressive Strength ≥150 MPa
Net-Shape Dimensional Tolerances
OD/ID: ±0.05 mm Pole Position: ±0.03° Radial Runout: ≤0.05 mm
Get Your Quote Now
MOQ: 500–2000 pcs (Negotiable depending on part design and volume)
Lead Time: 2–3 weeks for standard parts, 3–5 weeks for custom parts
OEM/ODM: Available
Engineering Support: Yes (Drawing review + Material selection + Magnetic/Mechanical parameter optimization)
