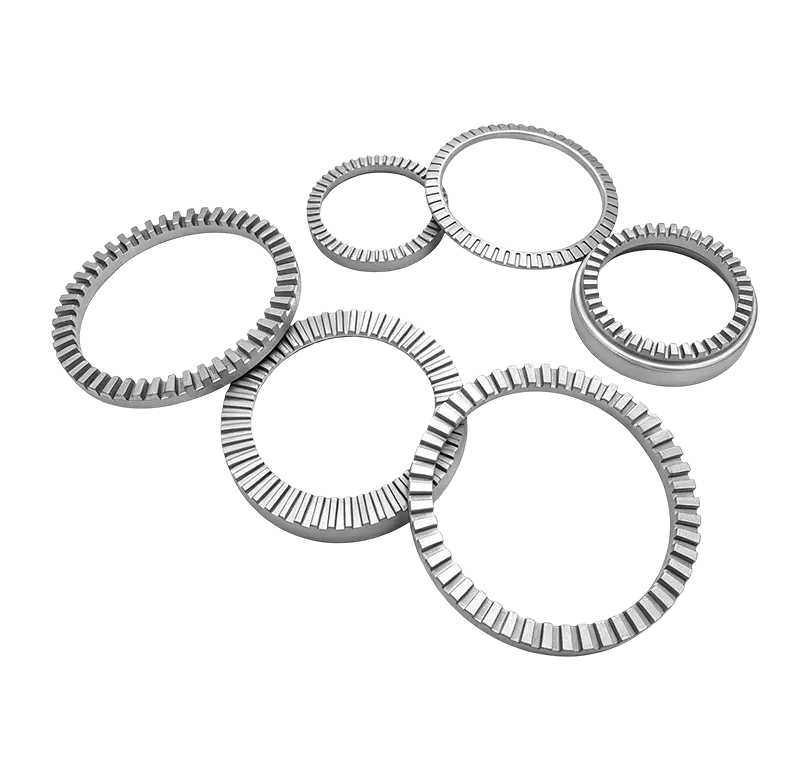

ABS Sensor Ring
Designed for passive or active wheel speed sensors, FRING’s ABS Sensor Rings offer stable output voltage amplitude across varying air gaps. The powder metallurgy process ensures uniform tooth profiles and high runout control, eliminating post-processing for cost-efficient mass production.
Main Datasheet
Applicable Specifications
Stringent Standards, Precision Specifications, Ultimate Reliability
Design & Quality Standards
MPIF 35, ASTM B817, GB/T 1979, IATF 16949
Standard Material Grades
MPIF: FC-0205, FC-0208
Typical Material Properties (Sintered Fe-Cu-C)
Density 6.8 – 7.0 g/cm³ Hardness 75 ± 5 HRB Tensile Strength ≥300 MPa
Net-Shape Dimensional Tolerances
Diameter (ID/OD): ±0.05 mm Tooth Spacing: ±0.02 mm Radial Runout: ≤0.08 mm
Performance Verification
Output Voltage Variation: ≤±5% (across air gap 0.3 – 1.5 mm)
Get Your Quote Now
MOQ: 500–2000 pcs (Negotiable depending on part design and volume)
Lead Time: 2–3 weeks for standard parts, 3–5 weeks for custom parts
OEM/ODM: Available
Engineering Support: Yes (Drawing review + Material selection + Magnetic/Mechanical parameter optimization)
