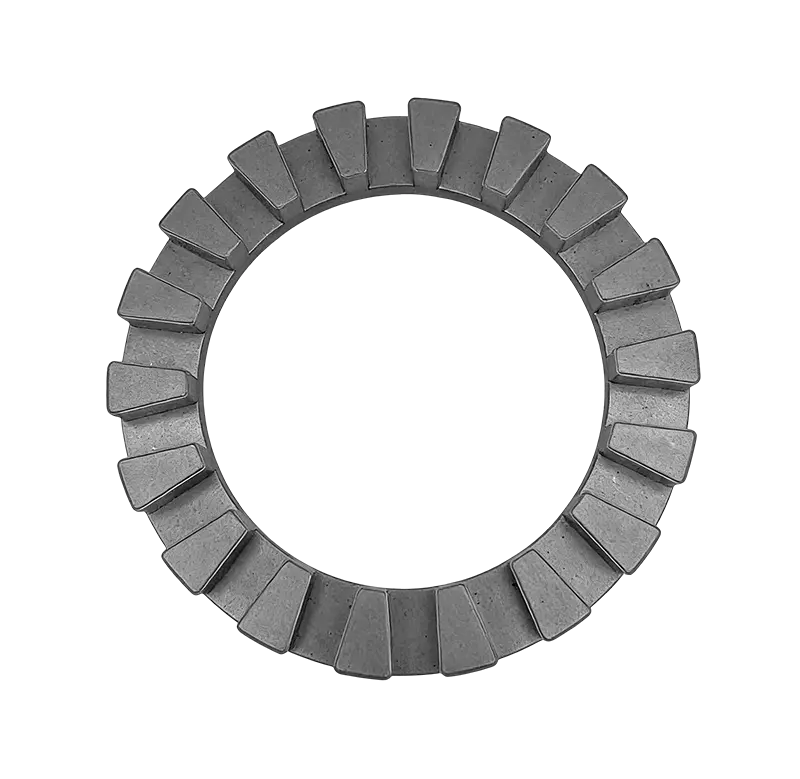

OD100-ID70-H12mm SMC Core
This larger-format SMC core (OD100-ID70-H12mm) is designed for high-power density motors and heavy-duty actuators. FRING’s warm compaction process ensures uniform density distribution across the 12mm height, minimizing delamination risk and maximizing magnetic flux transfer.
Main Datasheet
Applicable Specifications
Stringent Standards, Precision Specifications, Ultimate Reliability
Design & Quality Standards
ISO 9001, IATF 16949, RoHS
Standard Material Grades
FR-SMC-LF, FR-SMC-600
Typical Magnetic Properties
Saturation Flux Density ≥1.6 T Permeability (max) ≥500 Core Loss ≤18 W/kg @ 1000 Hz, 1.0 T
Typical Physical Properties
Density 7.3 – 7.5 g/cm³ Density Variation ≤±0.05 g/cm³ Operating Temperature Up to 200°C
Net-Shape Dimensional Tolerances
OD/ID: ±0.05 mm Height: ±0.05 mm Parallelism: ≤0.05 mm Flatness: ≤0.05 mm
Get Your Quote Now
MOQ: 500–2000 pcs (Negotiable depending on part design and volume)
Lead Time: 2–3 weeks for standard parts, 3–5 weeks for custom parts
OEM/ODM: Available
Engineering Support: Yes (Drawing review + Material selection + Magnetic/Mechanical parameter optimization)
Please fill out the form below with your project details and inquiry. One of our technical representatives will get back to you within 24 hours.
