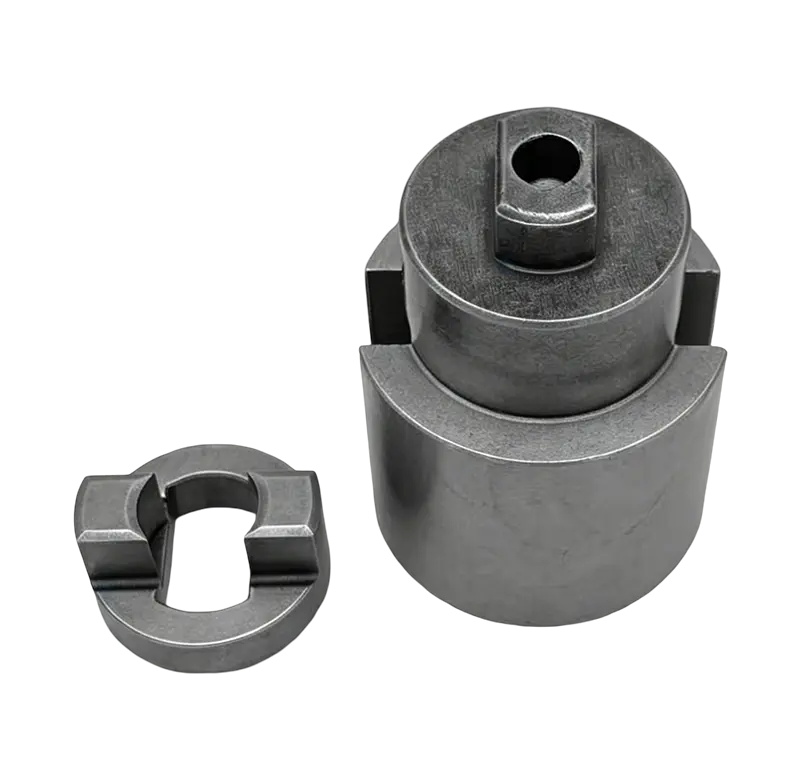

Stator and Rotor for Electric Vacuum Pumps

Self-Lubricating Pores, Matched Stator-Rotor Sets, Long-Life Vacuum Assist

FRING manufactures matched stator and rotor sets for electric vacuum pumps used in brake boosters and EGR systems. The powder metallurgy process provides oil-impregnated porosity for self-lubrication, reducing friction and wear while maintaining volumetric efficiency over millions of cycles.

DatasheetGet A Quotation
Product Stator and Rotor for Electric Vacuum Pumps

Main Datasheet

Rotor diameter
20 mm, 25 mm, 30 mm, 40 mm, 50 mm
Number of vane slots
4, 6, 8
Application
Electric vacuum pumps for brake boosters, EGR systems
Compatible vehicle types
EVs, hybrids, turbocharged engines
Installation
Slip-fit into pump housing
Material
Fe-Cu-C (oil-impregnated)

Applicable Specifications

Stringent Standards, Precision Specifications, Ultimate Reliability

  • Design & Quality Standards

    ISO 9001, IATF 16949, SAE J2450

  • Standard Material Grades

    MPIF: FC-0205, FC-0208

  • Typical Material Properties (Sintered Fe-Cu-C)

    Density 6.5 – 6.8 g/cm³ Hardness 65 – 75 HRB Oil Content ≥15% by volume

  • Net-Shape Dimensional Tolerances

    Diameter: ±0.02 mm Vane Slot Width: ±0.01 mm Concentricity: ≤0.03 mm

  • Performance Verification

    Volumetric Efficiency ≥95% | Cycle Life ≥5,000 hours

Get Your Quote Now

MOQ: 500–2000 pcs (Negotiable depending on part design and volume)
Lead Time: 2–3 weeks for standard parts, 3–5 weeks for custom parts
OEM/ODM: Available
Engineering Support: Yes (Drawing review + Material selection + Magnetic/Mechanical parameter optimization)
