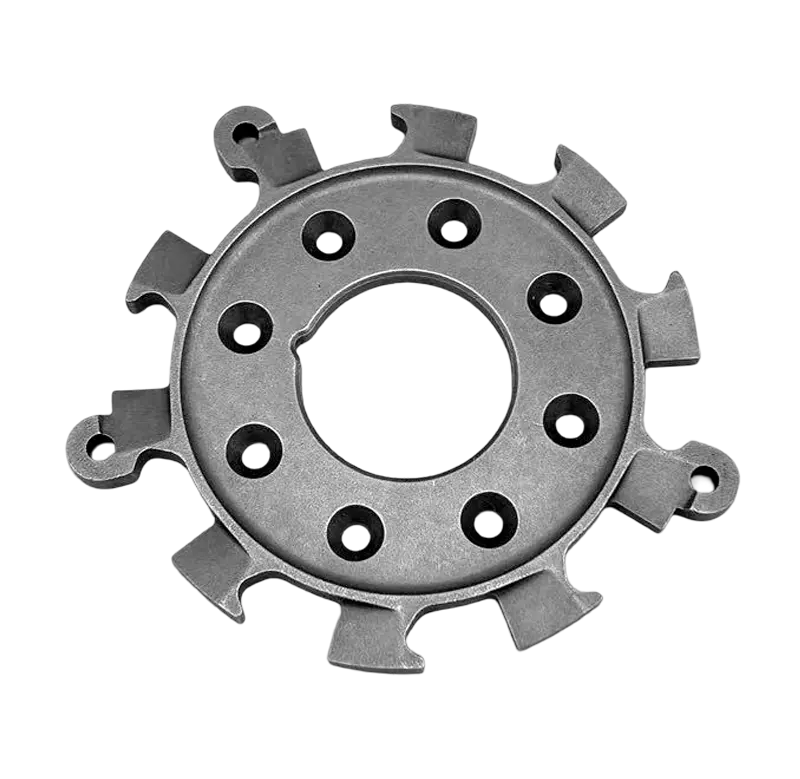

Rotary Latches / Locking Components for Actuators
FRING’s rotary latches and locking components are designed for linear and rotary actuators in industrial automation. The powder metallurgy process allows complex cam and detent geometries in one piece, providing positive locking with low actuation torque and high cycle life.
Main Datasheet
Applicable Specifications
Stringent Standards, Precision Specifications, Ultimate Reliability
Design & Quality Standards
ISO 9001, ISO 12100 (Machine safety), RoHS
Standard Material Grades
MPIF: FC-0208, FC-1000
Typical Material Properties (Case Hardened)
Density 6.8 – 7.0 g/cm³ Core Hardness 25 – 35 HRC Surface Hardness >50 HRC (case depth 0.3 – 0.5 mm)
Net-Shape Dimensional Tolerances
Cam Profile: ±0.02 mm Detent Position: ±0.02 mm Shaft Bore: ±0.01 mm
Performance Verification
Cycle Life ≥500,000 cycles Holding Torque Consistency ≤±5% Coefficient of Friction ≤0.15
Get Your Quote Now
MOQ: 500–2000 pcs (Negotiable depending on part design and volume)
Lead Time: 2–3 weeks for standard parts, 3–5 weeks for custom parts
OEM/ODM: Available
Engineering Support: Yes (Drawing review + Material selection + Magnetic/Mechanical parameter optimization)
