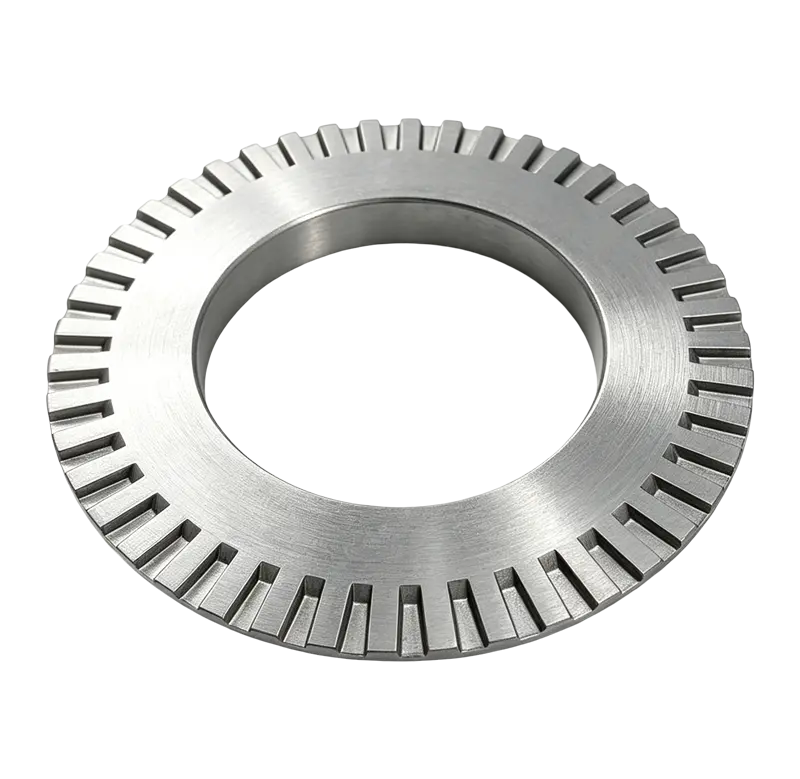

ABS Tone Ring for Wheel Hub Bearings

Integrated Bearing Design, Corrosion-Resistant, Long-Life Signal

FRING’s ABS Tone Rings are specifically optimized for integration with wheel hub bearing units. Manufactured to tight ID/OD tolerances, these rings feature corrosion-resistant surface treatments and press-fit interfaces that withstand bearing assembly stresses while maintaining signal integrity over extended service life.

DatasheetGet A Quotation
ABS Tone Ring for Wheel Hub Bearings

Main Datasheet

Number of teeth
60, 70, 80
Module
0.8, 1.0, 1.25, 1.5
Application
Passenger cars, SUVs, MPVs, light trucks
Compatible axle types
Generation 1/2/3 wheel hub bearings
Installation
Press-fit into bearing outer race
Material
Fe-Cu-C with zinc trivalent coating

Applicable Specifications

Stringent Standards, Precision Specifications, Ultimate Reliability

  • Design & Quality Standards

    MPIF 35, ASTM B817, IATF 16949, ISO 9001

  • Standard Material Grades

    MPIF: FC-0208, FN-0205

  • Typical Material Properties (Sintered Fe-Cu-C)

    Density 6.9 – 7.1 g/cm³ Hardness 75 ± 5 HRB Tensile Strength ≥320 MPa

  • Net-Shape Dimensional Tolerances

    Diameter (ID/OD): ±0.05 mm Tooth Spacing: ±0.02 mm Radial Runout: ≤0.08 mm

  • Surface Treatment Capability

    Zinc Trivalent (RoHS compliant), Geomet, Black Oxide

Get Your Quote Now

MOQ: 500–2000 pcs (Negotiable depending on part design and volume)
Lead Time: 2–3 weeks for standard parts, 3–5 weeks for custom parts
OEM/ODM: Available
Engineering Support: Yes (Drawing review + Material selection + Magnetic/Mechanical parameter optimization)
