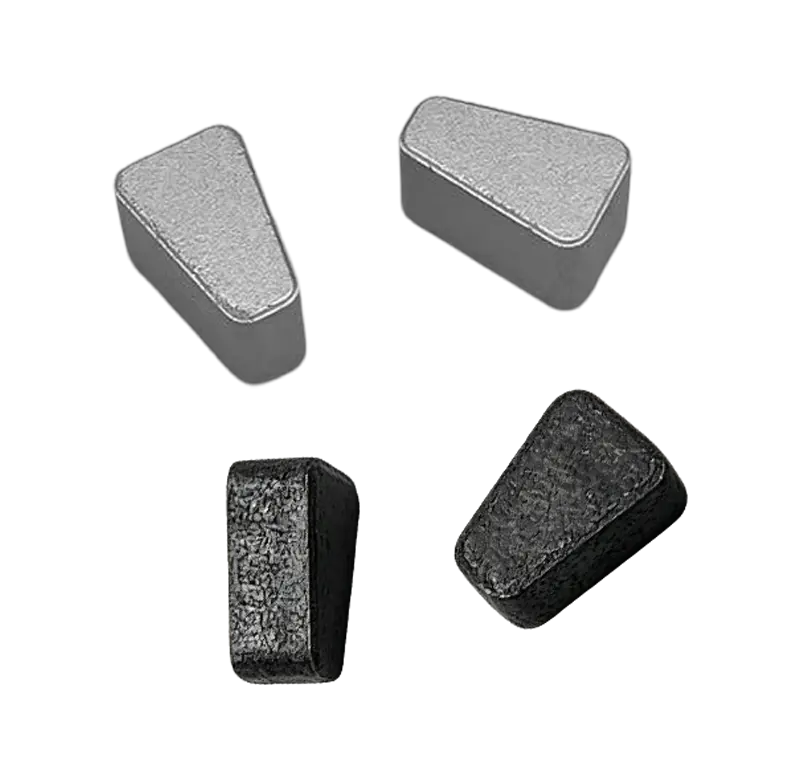

SMC Stator Core Teeth for Axial Flux Motors
FRING manufactures individual SMC stator core teeth for axial flux motors, enabling modular stator assembly and winding flexibility. Each tooth features high magnetic saturation and low eddy current loss, critical for achieving high power density in electric vehicle propulsion and e-aviation motors.
Main Datasheet
Applicable Specifications
Stringent Standards, Precision Specifications, Ultimate Reliability
Design & Quality Standards
ISO 9001, IATF 16949, RoHS
Standard Material Grades
FR-SMC-600, FR-SMC-700
Typical Magnetic Properties
Saturation Flux Density ≥1.6 T Permeability (max) ≥600 Core Loss ≤20 W/kg @ 1000 Hz, 1.0 T
Typical Physical Properties
Density ≥7.3 g/cm³ Electrical Resistivity ≥100 µΩ·m Operating Temperature -40°C to 180°C
Net-Shape Dimensional Tolerances
Tooth Profile: ±0.03 mm Height: ±0.05 mm Flatness: ≤0.05 mm
Get Your Quote Now
MOQ: 500–2000 pcs (Negotiable depending on part design and volume)
Lead Time: 2–3 weeks for standard parts, 3–5 weeks for custom parts
OEM/ODM: Available
Engineering Support: Yes (Drawing review + Material selection + Magnetic/Mechanical parameter optimization)
