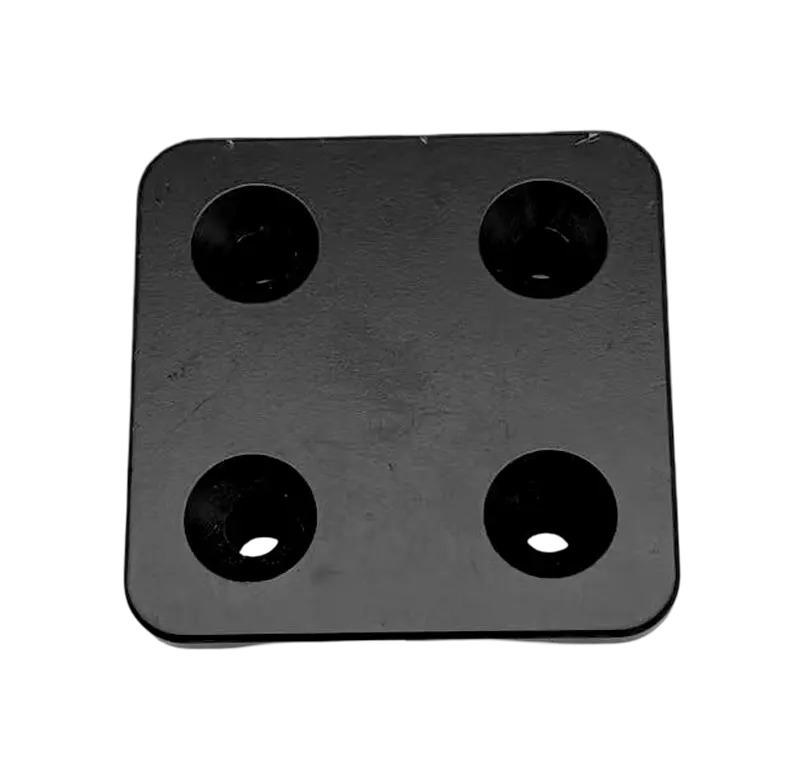

Quick Release Plate / Quick Assembly Plate
FRING’s quick release plates (quick assembly plates) are precision structural components for modular robotics and automation tool changers. Manufactured via high-tolerance powder metallurgy, these plates feature repeatable locating pins and locking features, enabling fast, rigid swapping of end effectors with minimal wear.
Main Datasheet
Applicable Specifications
Stringent Standards, Precision Specifications, Ultimate Reliability
Design & Quality Standards
ISO 9409 (Robot interface), ISO 9001, RoHS
Standard Material Grades
MPIF: FN-0205, FR-SS-316L (stainless steel grade)
Typical Material Properties (Heat Treated)
Density 6.9 – 7.2 g/cm³ Hardness 35 – 45 HRC Tensile Strength ≥500 MPa
Net-Shape Dimensional Tolerances
Locating Pin Position: ±0.01 mm Flatness: ≤0.02 mm Locking Feature: ±0.02 mm
Performance Verification
Mating Cycle Life ≥10,000 cycles Locking Repeatability ≤0.01 mm Corrosion Resistance (ASTM B117): ≥96 hours
Get Your Quote Now
MOQ: 500–2000 pcs (Negotiable depending on part design and volume)
Lead Time: 2–3 weeks for standard parts, 3–5 weeks for custom parts
OEM/ODM: Available
Engineering Support: Yes (Drawing review + Material selection + Magnetic/Mechanical parameter optimization)
